🛁 12 Best Broan Bathroom Fans for Quiet, Dry Air (2026)

The Broan Flex DC AE5010DC is our top all-around Broan bathroom fan recommendation because its selectable 50/80/110 CFM airflow, efficient DC motor, and very low published sound ratings let you match ventilation to the room without inviting a ceiling-mounted lawn mower into your morning routine. For a fixed 110-CFM option, the Broan QTXEG110X is an excellent quieter choice.

A good Broan fan should do three things well: move enough humid air outdoors, operate quietly enough that you actually use it, and fit your existing housing or installation plan. The headline specification matters, but duct size, bends, dampers, mounting, and a rattling grille can make or break the real-world result.

We learned that lesson while evaluating a fan that sounded impressively quiet on paper but developed annoying buzz after installation. The culprit was not the motor; it was a loose grille vibrating against the ceiling. Five minutes of reseating the clips transformed the bathroom from “tiny helicopter pad” to genuinely peaceful.

Broan’s range covers basic exhaust fans, selectable-CFM DC models, low-profile retrofit fans, humidity-sensing units, heaters, LED lights, decorative grilles, continuous-run ventilation, and Bluetooth speaker upgrades. So which one belongs above your shower? The answer depends on your bathroom size, ductwork, noise tolerance, and appetite for extra features.

Key Takeaways

  • Best overall: The Broan Flex DC AE5010DC on Amazon combines selectable airflow, efficient operation, and strong quietness potential.
  • Best quiet 110-CFM model: The Broan QTXEG110X on Amazon delivers substantial airflow with a published 0.4-sone rating.
  • Best small-bathroom option: The Broan QTXEG080X on Amazon offers 80 CFM and a quiet 0.4-sone rating.
  • Best retrofit upgrade: The Broan Sensonic FG800SPKS on Amazon adds a 600-lumen LED light and Bluetooth speaker to compatible existing housings.
  • Choose airflow carefully: A common starting point is roughly 1 CFM per square foot, but ceiling height, shower location, duct length, and bends also matter.
  • Prioritize quiet installation: Low sones are only part of the story. Rigid mounting, smooth ductwork, a working damper, and a secure grille prevent many real-world rattles and hums.
  • Vent outdoors: Ducted Broan fans should exhaust outside, not into an attic, wall cavity, or crawlspace.
  • Maintain the fan: Clean the grille and blower wheel every few months to preserve airflow and reduce noise.
  • Consider sensors: Humidity sensing, motion detection, timers, and continuous-run modes help prevent the classic “fan switched off too soon” problem.
  • Remember the compromise: Duct-free models such as the Broan 682NT can help with odors when outdoor ducting is impossible, but they do not exhaust shower moisture outdoors.

👉 Shop Broan bathroom fans:

Table of Contents

A Broan bathroom fan can be a wonderfully unglamorous hero: it clears steam, carries odors outdoors, and prevents your ceiling from slowly becoming a science experiment. Broan-NuTone says its ventilation fans remove humidity, odors, and airborne particulates, helping reduce moisture-related damage to paint, drywall, and wood structures. Read Broan-NuTone’s ventilation guidance.

Our first practical rule at Quietest™ is simple: buy airflow for the room, then buy quietness for your sanity. A powerful fan that sounds like a lawn mower can be left switched off. A quiet fan that barely moves air is a decorative ceiling ornament with ambitions.

Quick-reference facts

Question Practical answer
Best starting airflow About 1 CFM per square foot for many standard bathrooms, with additional consideration for showers, tubs, and ceiling height
Quiet target Under 1.0 sone is impressively quiet; under 1.5 sones is generally a comfortable target
Typical small-bathroom range 50–80 CFM
Typical larger-bathroom range 110–150 CFM, depending on room size and duct layout
Best installation Ducted to the outdoors, not into an attic or wall cavity
Best energy signal Look for ENERGY STAR® certification and a high-efficiency DC motor
Best retrofit shortcut A compatible Broan grille or upgrade kit, such as the Broan Sensonic FG800SPKS on Amazon
Best noise warning A low published sone rating does not rescue a kinked duct, loose grille, or rattling housing

The U.S. Environmental Protection Agency’s indoor-air guidance also supports source control and ventilation as core ways to improve indoor air quality. That does not mean a bathroom fan replaces mold remediation or a whole-home ventilation system, but it does mean the humble exhaust fan deserves more respect than it usually gets.

Our fast recommendations


Video: Replace a Bathroom Vent Fan, Easy 5 min Fix.








  • Small powder room: 50–80 CFM.
  • Typical full bathroom: 80–110 CFM.
  • Large bathroom or long duct run: 110–150 CFM, subject to proper duct sizing.
  • Noise-sensitive bedroom-adjacent bathroom: Prioritize 0.3–1.0 sone models, rigid mounting, and smooth duct routing.
  • Cold climate: Consider a heater model only if the circuit and installation support it.
  • Hands-off ventilation: Choose humidity sensing, motion sensing, or continuous-run operation.
  • No ductwork: A duct-free Broan 682-series fan can be useful, but it is a compromise because it filters and recirculates rather than exhausts moisture outdoors.
  • Existing compatible housing: A grille/light/speaker upgrade may be faster than replacing the whole assembly.

One seemingly tiny detail causes enormous disappointment: the fan’s published noise rating is measured under specified conditions, not in your uniquely shaped bathroom with a six-foot flexible duct doing origami above the ceiling.

Broan-NuTone is one of the best-known North American names in residential ventilation, with product families spanning basic exhaust fans, roomside retrofit models, low-profile units, selectable-CFM fans, continuous-run systems, Bluetooth speaker grilles, decorative designs, and commercial ventilation.

The company’s current catalog includes 37 listed fan products, with many ENERGY STAR-certified models, multiple duct sizes, and sound ratings ranging from very quiet to noticeably audible. Browse the Broan-NuTone bath fan catalog.

How bathroom exhaust fans remove moisture, odors, and indoor pollutants


Video: Costco Broan 80 cfm CST80SL bathroom fan wiring.







A bathroom exhaust fan creates pressure differences that pull humid room air into the grille. The blower wheel moves that air through a duct, and the duct carries it outside through a wall cap, soffit termination, or roof cap.

That process helps:

  1. Reduce condensation on mirrors, walls, ceilings, and windows.
  2. Limit moisture exposure to paint, drywall, trim, and framing.
  3. Remove odors at the source.
  4. Dilute airborne contaminants generated by cleaning products, aerosols, and personal-care products.
  5. Improve comfort after showers and baths.

The fan cannot remove moisture efficiently if the duct terminates in the attic. That merely relocates the problem, often adding condensation where insulation and framing would prefer a quiet life. The U.S. Department of Energy’s ventilation guidance explains why controlled ventilation and correct exhaust paths matter for indoor comfort and air quality.

Broan vs. Broan-NuTone: what the names mean


Video: Upgrade Your Exhaust Fan! Broan Sensonic ChromaComfort | Full Review.








You will encounter:

  • Broan: Commonly associated with ventilation, range hoods, fans, and air-quality products.
  • NuTone: A related brand name widely seen on bathroom ventilation, doorbells, intercoms, and home-comfort products.
  • Broan-NuTone: The corporate and product-family naming used across official documentation and catalogs.

For replacement work, the brand name is less important than the model number, housing dimensions, duct size, wiring, grille opening, and motor assembly. A Broan grille may fit a NuTone housing, and some third-party models appear on compatibility lists, but “it looks about right” is not an engineering specification.

Understanding CFM, sones, ENERGY STAR, and HVI ratings

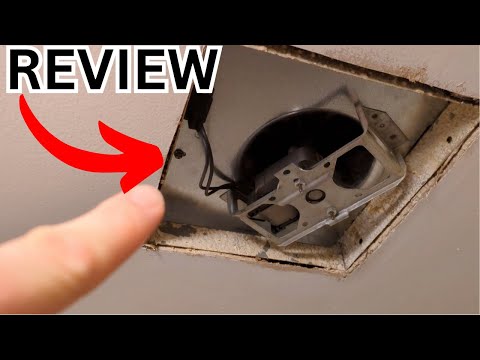

Video: Nutone Broan Bath Fan Replacement Motor – Review.








CFM: airflow capacity

CFM, or cubic feet per minute, describes how much air the fan can move. More CFM is not automatically better. The fan must overcome duct resistance, elbows, dampers, exterior caps, and static pressure.

Sones: perceived loudness

A sone is a unit used to communicate perceived sound level. Lower is quieter. Broan’s catalog lists examples such as:

  • Under 0.3 sone: exceptionally quiet under rated conditions.
  • 0.4–0.7 sone: very quiet for many residential applications.
  • 1.0–1.5 sones: generally comfortable, though audible.
  • 2–3 sones: clearly noticeable.
  • Above 3 sones: often too loud for a peaceful bathroom experience.

The Home Ventilating Institute provides ventilation-testing and rating resources. Treat sones as a useful comparison tool, not a guarantee of identical real-world results.

ENERGY STAR certification

ENERGY STAR-certified ventilation fans are tested against efficiency requirements. ENERGY STAR’s ventilation fan guidance is a valuable reference when comparing motor efficiency and airflow performance.

HVI certification

HVI certification helps standardize performance claims for airflow and sound. A certified result is more useful than a marketing phrase like “whisper quiet,” which can mean almost anything and occasionally means “quiet if you stand in another building.”

The following ratings are Quietest™ editorial scores on a 1–10 scale, combining published specifications, installation practicality, feature usefulness, retrofit flexibility, and noise-focused review criteria. They are not manufacturer ratings.

Rating snapshot


Video: DIY: BROAN BATHROOM FAN – Noisy Flapper Fix!!!!!







Product or series Best for Design Functionality Quietness Installation Overall
Broan QTXEG080X Quiet small-to-medium bathrooms 8 8 9 7 8.3
Broan QTXEG110X Quiet 110-CFM ventilation 8 9 9 7 8.5
Broan Flex DC AE5010DC Selectable airflow and efficiency 8 9 9 8 8.6
Broan LoProfile DC LP510R2 Low-profile retrofit flexibility 8 9 9 9 8.7
Broan PTE511RK EVOLVE Continuous operation 9 10 8 7 8.5
Broan Sensonic FG800SPKS Fast grille, light, and speaker upgrade 9 8 7 10 8.5
Broan QT130E High airflow 7 8 7 7 7.3
Broan 682NT Duct-free installation 7 6 6 9 7.0
Broan AE110 Straightforward 110-CFM ventilation 8 8 8 7 7.8
Broan heater/light combinations Cold bathrooms 8 9 6 6 7.3

1. Best overall quiet Broan bathroom fan: Flex DC AE5010DC


Video: Broan S97012029 Fan Review.








The Broan Flex DC AE5010DC on Amazon stands out for its selectable 50/80/110 CFM settings, ENERGY STAR certification, and published sound levels below approximately 0.3, 0.4, and 1.0 sone, depending on the selected airflow.

Why we like it

  • Selectable airflow accommodates different bathroom sizes.
  • DC motor design supports efficient operation.
  • Flexible housing and mounting options can simplify installation.
  • Quiet low and medium settings suit bathrooms near bedrooms.
  • Strong fit for homeowners who want one fan to adapt to future changes.

Drawbacks

  • Higher airflow is typically more audible.
  • Selectable wiring and controls require careful reading of the manual.
  • A poor duct run can erase the acoustic benefit.

Best for: A homeowner who wants one thoughtfully specified fan rather than a fixed-CFM guess.

👉 CHECK PRICE on:

2. Best quiet 110-CFM fan: QTXEG110X


Video: Bath Fan Replacement in 10 Minutes or Less!








The Broan QTXEG110X on Amazon offers 110 CFM, a published 0.4-sone rating, and ENERGY STAR certification.

Why it earns attention

This is the kind of specification that makes an audio engineer lean closer: meaningful airflow with a low published sound rating. It is a strong choice for a typical full bathroom when you want effective exhaust without an obvious ceiling roar.

Potential limitations

  • It may not be a drop-in match for every older Broan housing.
  • A 110-CFM fan can be unnecessary for a tiny powder room.
  • Duct size and external termination must support the airflow.

Best for: Standard bathrooms where quiet, fixed airflow is more valuable than selectable settings.

👉 CHECK PRICE on:

3. Best quiet 80-CFM fan: QTXEG080X


Video: How to Install a Bathroom Fan | Bathroom Fan Replacement | The Home Depot.








The Broan QTXEG080X on Amazon is rated at 80 CFM and 0.4 sones, making it attractive for smaller or medium-sized bathrooms.

Strengths

  • Very quiet published rating.
  • Adequate airflow for many residential bathrooms.
  • ENERGY STAR certified.
  • Straightforward, low-profile visual presence.

Weaknesses

  • Fixed airflow provides less flexibility.
  • It may struggle when a long, restrictive duct run adds static pressure.
  • Installation may involve attic access or housing replacement.

4. Best low-profile retrofit: LP510R2

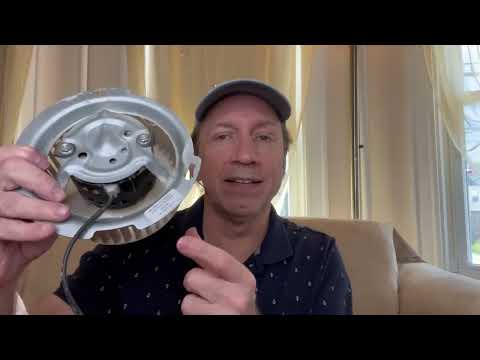

Video: How to Replace Bathroom Fan Motor – Nutone Broan (Complete Guide).








The Broan LP510R2 on Amazon combines selectable 50/80/100 CFM operation with a low-profile design and published sound levels below approximately 0.3/0.7/1.0 sones.

Why retrofit installers notice it

Low-profile housings are valuable when joist depth, duct routing, or ceiling clearance is awkward. The flexible airflow range also reduces the temptation to oversize blindly.

Watch-outs

  • Measure the existing opening carefully.
  • Confirm electrical and duct compatibility.
  • Do not assume “low profile” means “fits every old housing.”

👉 CHECK PRICE on:

5. Best continuous-run ventilation: EVOLVE PTE511RK


Video: Cheap & Easy Bathroom Exhaust Fan Fix! Broan 688.








The Broan PTE511RK on Amazon offers selectable 50/80/110 CFM settings and is designed for continuous ventilation.

Why continuous operation can be useful

Instead of waiting for a person to remember the switch after showering, a properly configured continuous-run fan can provide background air exchange and help manage lingering humidity.

Trade-offs

  • Continuous operation increases energy use compared with occasional operation.
  • The fan still needs a correctly routed duct.
  • Control wiring and commissioning require more attention.

Broan’s catalog lists the PTE511RK among its better-reviewed continuous-run models. User ratings are useful signals, but small review counts should be treated as anecdotal rather than laboratory evidence.

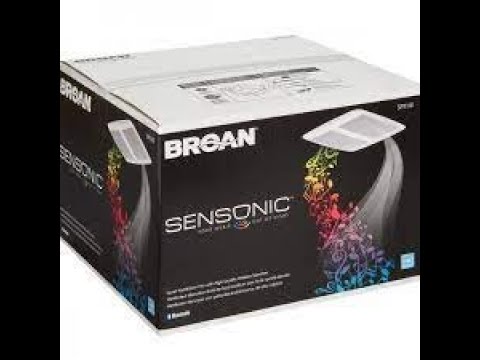

6. Best fast upgrade: Broan Sensonic FG800SPKS


Video: How To Install A Bathroom Exhaust Fan – Broan 688.








The Broan Sensonic FG800SPKS on Amazon adds a 600-lumen LED light, 300K color temperature, and a built-in Bluetooth speaker to compatible existing housings.

The manufacturer describes it as “The Easiest DIY. Ever.” That is unusually bold language for a grille, but the design largely earns the confidence when the existing housing is compatible.

Key specifications

Feature Broan FG800SPKS
LED output 600 lumens
Color temperature 300K
Rated LED life 25,000 hours
Grille size 11 × 9¾ × 2 inches
Compatible housing examples 7½ × 7¼ inches and 8¼ × 8 inches
Installation claim Five minutes or less
Wiring Quick-connect pass-through plug
Cutting required No, when compatible

What it does well

  • Adds useful lighting without replacing the entire fan housing.
  • Adds Bluetooth audio for music, podcasts, or news.
  • Avoids new wiring in compatible installations.
  • Includes two sets of grille springs.
  • Uses fewer ventilation slots, helping the grille stay cleaner.

What it does not do

  • It does not magically improve the underlying motor.
  • It does not turn a loud old fan into a silent one.
  • It does not fit every Broan, NuTone, Nautilus, or third-party housing.
  • It does not replace a ducted fan where moisture removal is the priority.

👉 CHECK PRICE on:

7. Best duct-free option: Broan 682NT


Video: How to Install Broan-NuTone InVent (FlexAir) Series Bathroom Ventilation Fans | Easy Installation.








The Broan 682NT on Amazon is intended for situations where ducting to the exterior is not available. It uses a charcoal filter and recirculates air.

The honest verdict

✅ Easier installation
✅ Useful for odor reduction and air movement
✅ Practical in some apartments or interior spaces
❌ Does not exhaust shower moisture outdoors
❌ Requires filter maintenance
❌ Not equivalent to a properly ducted exhaust fan

Use it when the building constraints leave no better option. Do not choose it merely because cutting a duct hole sounds inconvenient.

8. Best high-airflow choice: Broan QT130E


Video: How to REPLACE Bathroom Exhaust FAN Cover.








The Broan QT130E on Amazon provides 130 CFM at a published 1.5 sones.

It makes sense for larger bathrooms or situations where a stronger exhaust fan is warranted. It is not the quietest model in this guide, but 1.5 sones is still far more civilized than many older builder-grade fans.

A product page can tell you CFM and sones. It cannot tell you whether the fan will hum through a bedroom wall at 5:30 a.m. That is why we evaluate Broan fans as systems, not isolated motors.

Noise performance: comparing sones in real bathrooms


Video: Easy Bathroom Fan Replacement with a Broan‑NuTone Upgrade Kit | No Attic Access.








Published sound ratings are valuable, but actual noise depends on:

  • Duct length.
  • Number of elbows.
  • Duct diameter.
  • Exterior damper design.
  • Housing vibration.
  • Grille fit.
  • Joist and drywall resonance.
  • Whether the fan is mounted tightly.
  • Whether the blower wheel is dirty or damaged.

Sound-rating interpretation

Published rating Quietest™ interpretation Likely experience
Under 0.3 sone Exceptional Barely noticeable in many bathrooms
0.3–0.7 sone Excellent Quiet airflow with a soft mechanical presence
0.8–1.5 sones Very usable Clearly audible but not intrusive
1.6–3 sones Moderate Noticeable, especially in small rooms
Over 3 sones Loud Can dominate conversation and relaxation

Our sound engineers often hear more rattle and tonal hum from installation errors than from the motor itself. A loose grille can create a sharp buzz that feels louder than broad airflow noise, even when a meter suggests otherwise.

Airflow, odor removal, and moisture control


Video: Broan NuTone RVK1A: Best Roof Vent Kit for Bathroom Fans (Pro Installer Review).








A fan’s job is not to win a CFM beauty contest. It must move air through the complete system.

Airflow checklist

  • Is the duct connected?
  • Is the exterior cap open?
  • Is the damper stuck?
  • Is the duct crushed?
  • Is the duct too small?
  • Is the run unnecessarily long?
  • Is the fan housing sealed to the ceiling?
  • Is makeup air available under the bathroom door?

The International Code Council’s residential ventilation resources and ASHRAE Standard 62.2 provide broader ventilation context. Local code requirements can differ, so confirm with your authority having jurisdiction.

Build quality, grille design, and long-term reliability


Video: How to replace or repair a bathroom fan.








A reliable bathroom fan should have:

  • A motor assembly that can be serviced or replaced.
  • A rigid housing.
  • A grille that sits flat.
  • A damper that closes when the fan is off.
  • Corosion-resistant components appropriate for humid environments.
  • Accessible documentation and replacement parts.

Broan’s replacement ecosystem is a real advantage. Motors, wheels, grilles, lenses, controls, ducts, and adapters are easier to identify when the model number is preserved.

Energy use, lighting performance, and operating costs


Video: How to Install the Broan‑NuTone BKR60 Bathroom Fan Upgrade Kit | DIY Friendly.







ENERGY STAR-certified fans can reduce electricity use compared with older motors, especially when operated frequently. DC motor models are particularly attractive for continuous or long-duration operation.

Lighting adds another layer:

  • Integrated LED lights use less energy than many incandescent lamps.
  • Warm-white 300K light is flattering and comfortable.
  • A 600-lumen grille can provide useful general lighting, but may not replace a dedicated vanity fixture.
  • Heater models consume substantially more power than ventilation-only models.

Broan fans with built-in LED lights


Video: How to Install the RCM700 Upgrade (Compatible with over 90% of Broan-NuTone Fans).







A fan/light combination saves ceiling space and simplifies visual design. Look for:

  • Lumens.
  • Color temperature.
  • Dimming compatibility.
  • Replacement LED availability.
  • Whether the light and fan require separate switches.
  • Whether the grille is easy to remove for cleaning.

The Broan Sensonic FG800SPKS is especially attractive for retrofit work because it adds lighting without replacing the entire housing, assuming compatibility.

Broan fans with heaters and heat-lamp combinations


Video: How To Install A Bath Exhaust Fan | DIY.








A heater can make a cold bathroom feel dramatically more comfortable. But heater models are electrically and thermally more demanding.

Before installing a heater fan

  1. Confirm circuit capacity.
  2. Check whether separate wiring is required.
  3. Verify the switch or control rating.
  4. Maintain required clearances.
  5. Follow the manufacturer’s installation instructions.
  6. Have electrical work inspected when required.

✅ Great for chilly mornings
❌ More complex wiring
❌ Higher energy consumption
❌ Additional heat-producing components to maintain

Broan fans with humidity and motion sensing

Humidity sensors detect rapid increases in relative humidity, while motion sensors detect occupancy.

Humidity sensing

Humidity control is useful when:

  • Different people use the bathroom unpredictably.
  • Children forget to run the fan.
  • The bathroom is used for long showers.
  • You want the fan to continue after the light is switched off.

Motion sensing

Motion sensing can start the fan automatically, but it may not respond perfectly to every humidity event. A motion sensor can also activate when someone enters briefly without showering.

Best setup

A humidity-sensing fan with a timed run-on period is often more useful than motion sensing alone. Calibration matters; a sensor set too aggressively may run longer than necessary.

Broan Bluetooth bathroom fans with speakers

Bluetooth speaker grilles bring audio into the bathroom without adding a separate tabletop speaker near water.

The FG800SPKS offers:

  • Bluetooth connectivity.
  • Integrated speaker.
  • 600-lumen LED lighting.
  • Quick installation on compatible housings.

For sound quality, keep expectations realistic. The speaker is designed for spoken audio, background music, and casual listening, not a reference-grade stereo image. Bathroom surfaces are reflective, tile creates strong early reflections, and the fan itself adds broadband noise. For more acoustic advice, see Quietest™’s Quiet Electronics category.

Broan decorative fans for modern bathroom ceilings

Decorative grilles can make a ventilation fixture look intentional rather than like a plastic square that wandered into a renovation.

Options include:

  • Low-profile white grilles.
  • LED perimeter lighting.
  • Designer finish packs.
  • CleanCover-style grilles.
  • Fan/light combinations with coordinated trim.

A beautiful grille still needs effective ducting. A designer faceplate cannot negotiate with condensation.

Broan high-capacity and commercial ventilation fans

High-capacity models make sense for:

  • Large bathrooms.
  • Shared facilities.
  • Fitness rooms.
  • Laundry rooms.
  • Commercial restrooms.
  • Spaces with unusually high moisture or odor loads.

They often require larger ducts, more substantial controls, and careful consideration of makeup air. High airflow without a good exhaust path can create noise, drafts, and disappointing real-world performance.

Project Packs for bathroom ventilation upgrades

Broan project packs separate the housing installation from the final finish installation. The housing can go in during rough construction, while the motor plate, motor, wheel, and grille remain protected until drywall and painting are complete.

Why this helps

  • Reduces job-site damage.
  • Prevents small parts from disappearing into the renovation Bermuda Triangle.
  • Lets you choose the finish later.
  • Supports more organized contractor workflows.

Broan exhaust fans and replacement fans

Standard exhaust fans focus on reliable moisture and odor removal. They are often the best value when:

  • The existing fan is noisy.
  • The motor is failing.
  • The housing is damaged.
  • The duct is being replaced.
  • You want a clean, straightforward installation.

Broan Bluetooth fans with integrated audio

These combine ventilation, lighting, and audio. They work well in bathrooms where ceiling space is limited and the user enjoys music or podcasts.

Potential drawbacks include:

  • Additional electronics in a humid environment.
  • More complicated replacement if the grille assembly fails.
  • Audio performance limited by fan noise and reflective surfaces.

Broan fans with lights and LED grilles

These are ideal when the bathroom has one central ceiling fixture and you want to combine functions. Check whether the fixture provides enough light for shaving, makeup, or cleaning; a vanity light may still be needed.

Broan fans with heaters for winter comfort

Heater combinations are comfort-focused rather than minimalist. They are useful in cold climates but need correct electrical planning.

Broan humidity-sensing and motion-sensing fans

Sensors reduce reliance on memory and can help the fan run long enough to remove residual moisture. They are particularly useful in family bathrooms and rental properties.

Broan decorative and designer grille fans

Decorative models are best when the fan is visually prominent. Choose one that balances appearance with cleanability and replacement-part availability.

Broan high-capacity and commercial fans

These solve larger ventilation problems but should be selected with duct design, building pressure, noise, and code requirements in mind.

Broan grilles, covers, and upgrade kits

A replacement grille can transform a yellowed, dusty fan without replacing the entire housing. Broan describes some grille upgrades as installing in five minutes or less, with “no cut install” compatibility for approved housings.

Grille upgrade checklist

  • Measure housing length and width.
  • Confirm the model number.
  • Check whether the fan has a light receptacle.
  • Confirm grille depth.
  • Verify spring locations.
  • Check whether the motor plug passes through the grille assembly.

Broan wall controls, timers, and humidity switches

Useful control types include:

  • On/off switches.
  • Countdown timers.
  • Humidity-sensing controls.
  • Motion switches.
  • Multi-function controls for fan, light, and heater.
  • Variable or selectable-speed controls.

Timers are underrated. A 20-minute run-on period can prevent the classic mistake of switching off the fan the instant the shower ends, when the room is still wearing a warm fog blanket.

Mounting kits, brackets, and retrofit hardware

Mounting hardware affects both safety and acoustics. Loose brackets can create vibration, while an improperly supported housing can transmit noise through framing.

Use the manufacturer’s approved mounting method and avoid improvising with flimsy supports.

Ducting, dampers, adapters, and roof or wall caps

Ducting priorities

  1. Use the correct diameter.
  2. Keep the route short and straight.
  3. Minimize elbows.
  4. Support flexible duct so it does not sag.
  5. Seal joints with approved foil tape or mastic.
  6. Insulate ducts in cold spaces when condensation is a risk.
  7. Terminate outdoors with a functioning damper.

Flexible duct is convenient but can create more resistance and turbulence when compressed or sharply bent. Smooth, appropriately sized ducting often improves both airflow and acoustics.

Motors, blowers, and replacement fan wheels

If the housing and duct are sound, a replacement motor assembly may restore performance more economically and with less disruption than a full replacement.

Replace the motor when:

  • The motor hums but the wheel does not spin.
  • Bearings are worn.
  • The motor overheats.
  • The grille and housing remain in good condition.
  • A compatible assembly is available.

Replace the whole fan when:

  • The housing is coroded.
  • The duct connection is damaged.
  • The fan is fundamentally undersized.
  • The grille no longer fits.
  • Replacement parts are unavailable.

Light bulbs, lenses, LED modules, and light kits

Check:

  • Bulb base and wattage.
  • Heat rating.
  • Lens compatibility.
  • LED module replacement instructions.
  • Whether the light requires a separate neutral or switched conductor.

Never exceed the fixture’s stated rating. Bathroom humidity is not an invitation to experiment with overheated components.

Filters and other Broan ventilation replacement parts

Duct-free models depend heavily on charcoal filter maintenance. A saturated filter reduces odor-control performance and can restrict airflow.

Keep the model number handy. Searching by “old Broan fan filter” is an excellent way to receive twelve nearly identical parts and one existential crisis.

Calculating required CFM for small and large bathrooms

A common starting guideline is approximately 1 CFM per square foot for bathrooms up to a moderate size, while larger bathrooms may need additional calculations for fixtures and room volume. The Home Ventilating Institute’s bathroom ventilation guidance provides recognized sizing information.

Basic example

For a 70-square-foot bathroom:

  • Baseline target: approximately 70 CFM.
  • A selectable 50/80/110-CFM fan offers flexibility.
  • An 80-CFM fan may be a sensible practical choice.
  • A 110-CFM fan may be appropriate if the duct is efficient and the space has higher moisture demand.

When to choose 50, 80, 100, 110, or 150 CFM

Bathroom situation Reasonable starting point
Small powder room 50 CFM
Small full bathroom 60–80 CFM
Standard bathroom 80–110 CFM
Large bathroom 110–150 CFM
Long or restrictive duct run Consider higher capacity, but fix the duct first
Continuous background ventilation Selectable or low-speed DC model

The number is only half the story. An 80-CFM fan with a short, smooth duct can outperform a nominaly stronger fan connected to a crushed, undersized run.

Ceiling height, shower location, and multiple-bathroom ventilation

A tall bathroom contains more air volume. A shower located far from the grille may also require more strategic fan placement.

Consider:

  • Room volume.
  • Distance from moisture source to grille.
  • Shower enclosure configuration.
  • Door undercut and makeup air.
  • Whether the fan serves one room or multiple spaces.
  • Whether the fan is near a shared wall.

Why oversizing a bathroom exhaust fan can backfire

Oversizing can cause:

  • Increased noise.
  • Drafts.
  • Higher energy use.
  • Difficulty maintaining comfort.
  • Greater pressure imbalance.
  • Makeup-air problems in tightly sealed homes.

Do not use a 150-CFM fan in a tiny powder room simply because larger numbers look impressive on a box.

The quietest Broan candidates include the QTXEG080X, QTXEG110X, Flex DC AE5010DC, LP510R2, LP510RR, and selected Flex and Roomside models.

Sone ratings explained without technical fog

A sone rating is intended to correlate more closely with perceived loudness than raw decibels. That makes it useful for product comparisons, but the test environment and installation matter.

A fan rated at 0.4 sones can become irritating if:

  • The grille vibrates.
  • The damper clacks.
  • The duct whistles.
  • The housing touches framing.
  • The motor plate is not seated.
  • Dust throws the blower wheel out of balance.

Quietest Broan models for bedroom-adjacent bathrooms

Our shortlist:

  1. Broan QTXEG110X: 110 CFM, 0.4 sone.
  2. Broan QTXEG080X: 80 CFM, 0.4 sone.
  3. Broan Flex DC AE5010DC: very low published sound levels at lower settings.
  4. Broan LP510R2: selectable 50/80/100 CFM and low-profile construction.
  5. Broan LP510RR: similar selectable-airflow strategy.
  6. Broan AE80B: 80 CFM, 0.7 sone.
  7. Broan BE8: 80 CFM, 1.5 sones, a reasonable quieter-room option.

Why duct layout and installation affect fan noise

Noise travels through two paths:

  • Airborne noise through the duct and grille.
  • Structure-borne vibration through the housing, brackets, framing, and drywall.

Quiet installation sequence

  1. Mount the housing rigidly.
  2. Keep it from touching loose framing surfaces.
  3. Use properly sized smooth duct.
  4. Avoid sharp turns directly above the fan.
  5. Seal the ceiling-to-grille perimeter.
  6. Check that the damper moves freely.
  7. Run the fan and listen for tonal rattles.
  8. Inspect the grille springs and motor plate.

For more household sound-control strategies, browse Quietest™’s Noise Reduction Tips and Low Noise Household Items.

Choosing between LED, incandescent, and heat-lamp models

Light type Advantages Drawbacks
Integrated LED Efficient, long life, compact Module replacement may be less familiar
Replaceable LED bulb Easy replacement, broad options Bulb may protrude or require compatible lens
Incandescent Familiar and inexpensive to replace Higher heat and energy use
Heat lamp Adds warmth High wattage and more complex wiring

Bathroom fan lighting color temperature and brightness

  • 270K: Warm and relaxing.
  • 300K: Comfortable, flattering, and common in residential bathrooms.
  • 350–400K: Crisper and more task-oriented.
  • 500K: Very cool and bright; can feel clinical.

A 600-lumen fan grille can work as general illumination, but vanity tasks benefit from dedicated lighting near the mirror to reduce facial shadows.

Heater wattage, dedicated circuits, and cold-weather safety

Heater fans can draw far more power than ventilation-only models. Follow the installation manual for:

  • Circuit requirements.
  • Wire gauge.
  • Switch configuration.
  • Thermal protection.
  • Grounding.
  • Required clearances.

If the existing ceiling box was wired only for a basic fan, assume the heater will require additional planning until proven otherwise.

Bluetooth pairing, audio quality, and speaker placement

The Broan Sensonic grille is practical for podcasts, audiobooks, and background music. Pairing is generally straightforward:

  1. Turn on the grille’s power.
  2. Enable Bluetooth on the phone.
  3. Select the speaker from the available device list.
  4. Play audio at a moderate level.
  5. Keep the phone outside splash zones.

Because bathrooms are acoustically lively, moderate volume is usually enough. Tile and glass provide plenty of natural amplification, though not always the pleasant kind.

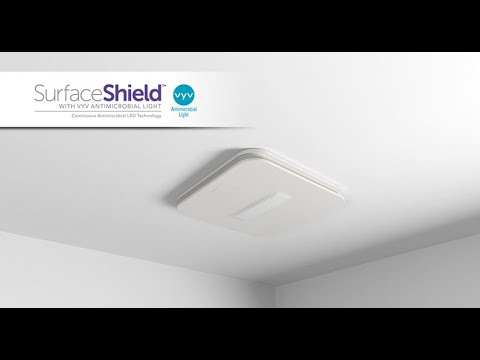

How Broan SurfaceShield technology works

The Broan-NuTone SurfaceShield Exhaust Fan with Vyv antimicrobial light technology combines ventilation with antimicrobial-light technology intended to help inhibit certain microbial growth on treated surfaces.

Read the manufacturer’s SurfaceShield information for product-specific claims, operating instructions, and limitations.

What antimicrobial light can and cannot do

✅ It may provide an additional hygiene feature.
✅ It works alongside ventilation and ordinary cleaning.
❌ It is not a substitute for cleaning.
❌ It does not repair leaks or eliminate all mold risk.
❌ It should not be treated as a medical sterilization device.

The most dependable moisture-control strategy remains:

  1. Capture humid air near the source.
  2. Exhaust it outdoors.
  3. Run the fan long enough after the shower.
  4. Keep surfaces clean and dry.
  5. Repair plumbing leaks quickly.

Cleaning requirements for hygienic bathroom ventilation

Even advanced grilles collect dust. Follow the product instructions, disconnect power when cleaning, and avoid spraying liquid into the motor, speaker, light module, or electrical connections.

The easiest DIY bathroom fan upgrade

The quickest project is usually a compatible grille replacement, not a complete fan replacement. The FG800SPKS, for example, is designed to connect through an existing compatible housing and may require no cutting or additional wiring.

👉 CHECK PRICE on:

New construction versus retrofit installation

New construction

You can plan:

  • Joist placement.
  • Duct route.
  • Exterior termination.
  • Electrical circuits.
  • Grille location.
  • Access for future maintenance.

Retrofit

You must work around:

  • Existing joists.
  • Finished drywall.
  • Old housing dimensions.
  • Existing duct location.
  • Unknown wiring.
  • Hidden insulation.
  • Limited attic access.

Retrofit fans designed for roomside installation can reduce attic crawling, which is excellent news for both your knees and your dignity.

Electrical wiring, switches, timers, and circuit requirements

Common wiring arrangements include:

  • One switch for fan.
  • Separate switches for fan and light.
  • Separate controls for fan, light, and heater.
  • Timer or humidity control.
  • Continuous low-speed operation.

Turn off power at the breaker, verify the circuit is de-energized, and follow the manual. If you are not comfortable identifying conductors, grounding, or circuit capacity, hire a qualified electrician.

Duct routing, exterior venting, and condensation prevention

Correct ducting process

  1. Select the appropriate duct diameter.
  2. Plan the shortest practical route.
  3. Avoid unnecessary elbows.
  4. Support the duct to prevent saging.
  5. Insulate ductwork in cold attic spaces.
  6. Seal joints with approved foil tape or mastic.
  7. Install an exterior cap with a backdraft damper.
  8. Confirm the damper opens when the fan runs.

Never exhaust into:

  • An attic.
  • A crawlspace.
  • A wall cavity.
  • A soffit location that can send moist air back into the structure.

Installing through the ceiling, attic, wall, or roof

The installation method depends on the model and building configuration. Roof and wall penetrations must be flashed and sealed properly. In cold climates, vapor and condensation details deserve special attention.

When to hire an electrician or HVAC professional

Hire help when:

  • A heater is being added.
  • The circuit is overloaded.
  • Wiring is damaged or unclear.
  • The duct must pass through difficult structural areas.
  • The exterior termination is inaccessible.
  • Local permits or inspections are required.
  • The fan serves commercial or multi-unit spaces.

How to identify your existing Broan model number

  1. Switch off power.
  2. Pull the grille down approximately two inches.
  3. Squeeze the spring clips.
  4. Remove the grille.
  5. Look for a label near the outlet or motor plate.
  6. Record the model number, CFM, voltage, and date code if visible.
  7. Measure the housing opening.
  8. Check duct size and plug configuration.

The FG800SPKS compatibility instructions specifically recommend checking housing dimensions and locating the model number stamped inside the assembly.

Compatible Broan replacement motors and grilles

Compatibility may depend on:

  • Housing dimensions.
  • Spring spacing.
  • Receptacle location.
  • Motor plate shape.
  • Duct outlet position.
  • Light wiring.
  • Grille depth.

Do not rely on brand alone. The same-looking grille can fail to seat properly or leave gaps that cause air leakage and noise.

Can you replace only the motor or fan assembly?

Often, yes. A motor replacement is sensible when the housing, duct connection, and electrical components remain sound.

Motor-only replacement steps

  1. Shut off power.
  2. Remove grille.
  3. Disconnect motor plug.
  4. Release motor plate clips or screws.
  5. Remove the motor and wheel assembly.
  6. Clean the housing.
  7. Install the replacement.
  8. Confirm the wheel spins freely.
  9. Restore power and test.

Using Broan upgrade kits in existing housings

Upgrade kits are attractive because they can modernize:

  • Lighting.
  • Grille appearance.
  • Audio.
  • Airflow control.
  • Cleaning access.

They are not universal. Confirm compatibility before ordering.

What the first replacement video gets right

In the featured replacement video, the presenter demonstrates releasing clips and tabs, removing a broken Broan fan, and installing a replacement kit. One especially useful detail is the gap between the fan unit and drywall: sealing that gap with duct tape helps prevent airflow leakage.

The video’s larger lesson is worth keeping: fan replacement can be straightforward when the new assembly matches the housing, but the small sealing and fit details determine whether the finished system is efficient and quiet.

How often to clean a bathroom exhaust fan

A practical schedule:

  • Light-use bathroom: every 6–12 months.
  • Family bathroom: every 3–6 months.
  • High-dust or pet-heavy home: every 2–3 months.
  • Fan with visible buildup or increasing noise: clean immediately.

Safe grille, blower wheel, and motor cleaning

  1. Turn off the breaker.
  2. Remove the grille.
  3. Wash or vacuum the grille according to its material.
  4. Use a soft brush or vacuum attachment on the housing.
  5. Carefully clean the blower wheel.
  6. Keep liquid away from electrical components.
  7. Inspect the wheel for cracks.
  8. Reinstall the grille securely.
  9. Restore power and listen for vibration.

Replacing filters, bulbs, lenses, and dampers

Replace or clean:

  • Charcoal filters in duct-free models.
  • Bulbs that flicker or overheat.
  • Cracked lenses.
  • Stiff or broken dampers.
  • Worn grille springs.
  • Damaged motor wheels.

Preventing mold, dust buildup, and reduced airflow

  • Run the fan during showers and afterward.
  • Leave the bathroom door open when appropriate.
  • Keep the grille clean.
  • Do not block the door undercut.
  • Repair plumbing leaks.
  • Make sure the exterior cap is not obstructed.
  • Avoid painting over the grille.

Why your Broan fan is loud, rattling, or buzzing

Likely causes:

  • Loose grille.
  • Loose motor plate.
  • Dust-covered blower wheel.
  • Worn bearings.
  • Bent wheel.
  • Damaged damper.
  • Duct vibration.
  • Housing touching framing.
  • Screws or clips missing.

Quick diagnosis

  1. Turn the fan off.
  2. Remove and reseat the grille.
  3. Check for loose clips.
  4. Inspect the wheel for debris.
  5. Spin the wheel manually with power off.
  6. Check the duct for a loose flap.
  7. Run the fan briefly and identify whether the sound is airflow, hum, rattle, or clicking.

A low-frequency hum that travels through the ceiling often indicates structure-borne vibration. A sharp ticking may be the damper. A scraping sound usually deserves immediate attention.

Why the fan runs but does not remove moisture

Check:

  • Exterior termination.
  • Damper operation.
  • Duct connection.
  • Duct kinks.
  • Grille blockage.
  • Fan size.
  • Makeup air.
  • Shower location.

A useful test is to hold a single sheet of toilet paper against the grille. It should be drawn upward while the fan operates. This does not quantify CFM, but it quickly reveals whether the fan is moving meaningful air.

Why a Broan fan will not turn on

Possible causes:

  • Tripped breaker.
  • Tripped GFCI where applicable.
  • Failed wall switch.
  • Loose wire.
  • Failed motor.
  • Disconnected plug.
  • Humidity or motion control malfunction.
  • Thermal overload.

Do not open energized equipment. If basic breaker and switch checks do not resolve the issue, call an electrician.

Why the light, heater, sensor, or speaker stops working

Different functions may have separate:

  • Wiring.
  • Switches.
  • Plugs.
  • Fuses or thermal protection.
  • Control modules.
  • LED drivers.

A working fan with a dead light may indicate a light-side wiring or LED-module issue rather than a motor failure. A Bluetooth speaker may need pairing reset or power-cycle troubleshooting.

Reseting humidity sensors, timers, and Bluetooth connections

Try:

  1. Turn the circuit off for several minutes.
  2. Restore power.
  3. Reset the wall control according to its manual.
  4. Remove the speaker from your phone’s Bluetooth list.
  5. Re-pair at close range.
  6. Confirm the fan and accessory receive the correct power.

Bathroom exhaust fan electrical safety

  • Switch off the breaker.
  • Verify power is off.
  • Use listed components.
  • Maintain grounding.
  • Follow wire-size and circuit instructions.
  • Keep electrical connections inside approved enclosures.
  • Do not modify heater wiring casually.
  • Use a qualified electrician for uncertain work.

GFCI protection, wet locations, and heater wiring

Requirements vary by jurisdiction and installation location. Bathrooms commonly involve GFCI-protected circuits and specific rules for equipment near tubs and showers. Consult the National Electrical Code information from NFPA and local code officials.

Why bathroom fans must vent outdoors

Moisture discharged into an attic or wall cavity can condense on cold surfaces, supporting mold growth and damaging insulation or framing. Outdoor termination is the correct path for a ducted exhaust fan.

ASHRAE, IRC, and ENERGY STAR ventilation considerations

Use reputable standards and manufacturer instructions together:

Model or series Airflow Published sound ENERGY STAR Standout feature Main caution
QTXEG080X 80 CFM 0.4 sone Yes Quiet fixed airflow Confirm housing and duct fit
QTXEG110X 110 CFM 0.4 sone Yes Quiet 110-CFM ventilation May require retrofit work
AE5010DC 50/80/110 CFM Under 0.3/0.4/1.0 sone Yes Selectable DC airflow More setup decisions
LP510R2 50/80/100 CFM Under 0.3/0.7/1.0 sone Yes Low profile Measure carefully
LP510RR 50/80/100 CFM Selectable Yes Low-profile flexibility Check exact specifications
PTE511RK 50/80/110 CFM Selectable Yes Continuous run More complex controls
QT130E 130 CFM 1.5 sones Yes High airflow More audible
AE110 110 CFM 1.0 sone Yes Straightforward ventilation Fixed airflow
682NT Duct-free Not directly comparable Varies No duct required Does not exhaust moisture
FG800SPKS Grille upgrade Depends on existing fan N/A LED and Bluetooth Compatible housings only

Comparing CFM, sones, lights, heaters, sensors, and controls

Feature Benefit Cost in complexity
Higher CFM Faster moisture removal More noise and energy potential
Lower sones Better acoustic comfort Often higher product cost and tighter installation requirements
LED light Efficient illumination More electronics
Heater Winter comfort High wattage and wiring complexity
Humidity sensor Automatic moisture response Calibration and false starts
Motion sensor Hands-free operation May miss humidity without occupancy
Bluetooth speaker Audio without extra device Added electronics and pairing
Continuous run Background ventilation Ongoing energy use

Broan’s catalog ratings show a mixed but informative pattern. Some newer or specialized models receive strong user ratings, while other models have too few reviews to support a confident judgment.

Common compliments from long-term users

  • Quiet operation.
  • Easy replacement.
  • Good moisture removal.
  • Clean appearance.
  • Useful selectable airflow.
  • Better performance than builder-grade fans.
  • Availability of replacement parts.

Models such as the BE8, LP510R2, LP510RR, PTE511RK, and PTE1115RK appear favorably in the summarized catalog data, but review counts vary.

Common complaints and deal-breakers

  • Fan noise higher than expected.
  • Difficult attic installation.
  • Housing not matching old cutout.
  • Weak airflow through poor ductwork.
  • Light or speaker functionality failing independently.
  • Sensor behavior requiring adjustment.
  • Grille collecting dust.
  • Replacement parts being model-specific.

The conflict between published sound ratings and owner complaints is usually explained by installation differences. A catalog rating describes the product under test conditions; an owner hears the product through their ceiling, duct, damper, framing, and room acoustics.

Warranty, replacement parts, and customer support

Before buying, confirm:

  • Warranty length.
  • Motor replacement availability.
  • Grille and lens availability.
  • Control compatibility.
  • Installation documentation.
  • Official support channels.

The Broan-NuTone official site remains the best place to verify current model status and documentation.

Questions to ask before choosing a model

  • What is the bathroom’s square footage and ceiling height?
  • Where does the duct terminate?
  • What duct diameter is installed?
  • Is the fan near a bedroom?
  • Do you need a light?
  • Do you need a heater?
  • Would humidity sensing help?
  • Is a Bluetooth speaker genuinely useful?
  • Can the existing housing accept an upgrade grille?
  • Is the fan ENERGY STAR certified?
  • Is the published sound rating under 1.5 sones?
  • Are replacement parts available?

What to measure before ordering

Measure:

  • Existing housing length and width.
  • Housing depth.
  • Ceiling opening.
  • Grille length and width.
  • Duct diameter.
  • Joist spacing.
  • Electrical box and switch configuration.
  • Spring locations.
  • Distance to the exterior termination if accessible.

Essential features versus nice-to-have extras

Essential

  • Correct airflow.
  • Outdoor duct termination.
  • Safe electrical installation.
  • Reasonable sound rating.
  • Compatible housing or mounting method.
  • Accessible replacement parts.

Nice to have

  • LED lighting.
  • Bluetooth audio.
  • Humidity sensing.
  • Motion sensing.
  • Continuous-run mode.
  • Decorative grille.
  • Selectable CFM.
  • Heater.

The unresolved question from the beginning was whether the quietest fan is simply the one with the lowest number on the box. It is not. The quietest successful installation is the combination of an appropriately sized Broan fan, a clean duct path, solid mounting, sealed gaps, and a grille that does not rattle. That is why a well-installed 1.0-sone fan can feel calmer than a badly installed 0.4-sone model.

A Broan bathroom fan is a strong choice when you match the model to the room, ductwork, and installation constraints rather than chasing one impressive specification.

Our final recommendations

  • Best overall: Broan Flex DC AE5010DC for selectable airflow, efficiency, and quiet operation.
  • Best quiet fixed-airflow model: Broan QTXEG110X for 110 CFM at a published 0.4 sone.
  • Best smaller-bathroom option: Broan QTXEG080X.
  • Best retrofit choice: Broan LP510R2 or LP510RR, after measuring carefully.
  • Best continuous ventilation: Broan PTE511RK EVOLVE.
  • Best quick cosmetic and technology upgrade: Broan Sensonic FG800SPKS.
  • Best no-duct compromise: Broan 682NT, provided you understand that it recirculates rather than exhausts moisture outdoors.
  • Best cold-weather comfort: A Broan heater/light combination installed on the correct circuit by a qualified professional.

The positives

✅ Broad model range
✅ Strong selection of quiet and ENERGY STAR-certified fans
✅ Selectable-CFM and continuous-run options
✅ Useful replacement motors, grilles, controls, and upgrade kits
✅ Bluetooth, LED, heater, sensor, and decorative choices
✅ Good retrofit potential

The negatives

❌ Model compatibility can be confusing
❌ Installation quality heavily affects noise and airflow
❌ Duct-free models do not remove moisture outdoors
❌ Heater models require more complex wiring
❌ Some product pages have limited review counts
❌ Integrated electronics can make future repairs more specialized

The answer to our opening mystery is pleasantly practical: the best Broan fan is not necessarily the most powerful or the quietest on paper. It is the one that moves enough air, fits the space, vents outdoors, and stays quiet after installation.

Official Broan-NuTone resources

What are the benefits of using a quiet Broan bathroom fan in terms of reducing bathroom noise pollution?

A quiet Broan fan reduces the mechanical noise competing with conversation, sleep, music, and relaxation. Models rated below 1.0 sone, such as the QTXEG080X, QTXEG110X, and selected DC models, are especially suitable for bathrooms near bedrooms.

The benefit is not merely comfort. A quieter fan is more likely to be used consistently, and consistent use improves moisture control. The quietest fan in the box is useless if everyone avoids switching it on.

How do I maintain my Broan bathroom fan to ensure it remains quiet and functions properly?

Clean the grille and blower wheel every three to twelve months depending on dust and usage. Inspect the motor plate, grille springs, damper, and duct connection. Remove power before cleaning.

If noise increases suddenly, look for debris, a loose grille, a damaged wheel, or worn bearings. Do not lubricate components unless the manufacturer specifically permits it.

Are Broan bathroom fans energy efficient and quiet, making them a good choice for my bathroom?

Many Broan models are ENERGY STAR certified and offer sound ratings below 1.5 sones. DC motor models and continuous-run products can be especially efficient for longer operating periods.

Check the individual model rather than assuming every Broan fan has the same efficiency. Also remember that a blocked or undersized duct can force the system to work harder while delivering disappointing ventilation.

Can a Broan bathroom fan help reduce moisture and noise in my bathroom at the same time?

Yes. Choose enough CFM for the bathroom and select a low-sone model. Install it with a smooth, properly sized duct, seal the housing perimeter, and prevent grille vibration.

A quiet fan with inadequate airflow will not solve moisture problems. A high-CFM fan with poor acoustic installation may solve humidity while creating an entirely different complaint.

What are the key features to look for in a quiet Broan bathroom fan for my home?

Prioritize:

  • Correct CFM.
  • Published sound rating under 1.5 sones.
  • ENERGY STAR certification.
  • HVI-tested performance where available.
  • Selectable CFM if room demands are uncertain.
  • DC motor for efficient operation.
  • Rigid mounting options.
  • Replacement parts.
  • Compatible duct size.
  • Humidity sensing if users often forget the fan.

Treat lights, speakers, heaters, and decorative grilles as secondary features after airflow, noise, and installation compatibility.

How do I install a Broan bathroom fan to minimize noise and maximize ventilation?

Use this sequence:

  1. Choose the correct CFM.
  2. Confirm housing and duct dimensions.
  3. Mount the housing rigidly.
  4. Keep it clear of loose framing contact.
  5. Use smooth, correctly sized ductwork.
  6. Minimize bends.
  7. Seal duct joints.
  8. Seal gaps between housing and ceiling.
  9. Vent outdoors.
  10. Confirm the exterior damper opens.
  11. Run the fan and listen for rattles.
  12. Use a timer or run-on period after showers.

Hire an electrician for uncertain wiring, heater installations, or permit-controlled work.

What are the quietest Broan bathroom fans available for a peaceful bathroom experience?

Strong candidates include:

  • QTXEG080X: 80 CFM, 0.4 sone.
  • QTXEG110X: 110 CFM, 0.4 sone.
  • AE5010DC: selectable airflow with very low published ratings at lower settings.
  • LP510R2: selectable 50/80/100 CFM and very low published ratings.
  • LP510RR: selectable low-profile design.
  • AE80B: 80 CFM, 0.7 sone.
  • AE110: 110 CFM, 1.0 sone.

The installation can matter as much as the model. A loose grille can make an excellent fan sound broken.

What is the best Broan fan for a bathroom?

For most buyers, the Broan Flex DC AE5010DC is the best all-around choice because it provides selectable airflow, efficient operation, and strong acoustic potential.

For a fixed 110-CFM fan, choose the QTXEG110X. For a fast compatible upgrade, choose the FG800SPKS grille. For a duct-free location, choose the 682NT only when outdoor ducting is genuinely unavailable.

How do you clean a Broan bathroom exhaust fan?

Turn off the breaker, remove the grille, vacuum loose dust, wash the grille if permitted, and gently clean the blower wheel and housing with a soft brush. Keep liquid away from the motor and electrical connections.

Reinstall the grille firmly and test for vibration. Replace damaged wheels, cracked lenses, clogged charcoal filters, or weak grille springs.

How do you remove an old Broan bathroom fan housing?

Turn off power, remove the grille and motor plate, disconnect the wiring, detach the duct, and remove the mounting screws, brackets, or tabs securing the housing to the framing.

In some retrofit installations, access from the attic is required. Do not cut structural members or disturb wiring blindly. If the housing is nailed in or difficult to access, a professional can often remove it with less drywall damage.

Is 110 CFM good for a bathroom fan?

110 CFM is appropriate for many medium-to-large bathrooms, but it may be excessive for a tiny powder room. Confirm room size, ceiling height, shower location, and duct design.

A 110-CFM fan cannot deliver its rated benefit through a restrictive, crushed, or undersized duct. Match the complete ventilation system, not just the number on the grille.

Why is my Broan fan not working?

Check the breaker, wall switch, GFCI where applicable, wiring, motor plug, humidity control, and thermal protection. If the motor hums but does not spin, the motor or blower wheel may be seized. If there is no sound at all, the issue may be power, control, wiring, or motor failure.

Disconnect power before opening the fan. Contact a qualified electrician when wiring is unclear or the fan includes a heater.

Jacob
Jacob

Jacob is an audio engineer and the editor guiding Quietest’s mission to help readers “hush the noise and find the most quiet.” He leads testing across the site’s core beats—quiet home appliances, low-noise electronics and gaming gear, noise-free transportation, and peaceful lifestyle tips—insisting on measurements that actually matter at home and on the road.

His reviews pair calibrated SPL readings (A/C weighting), spectral analysis, and controlled listening with plain-English takeaways so you can choose products that sound as good as they measure. From whisper-quiet refrigerators and fans to serene cabins in modern EVs and SUVs, Jacob sets the bar for evidence-based picks and clear guidance on reducing everyday noise—one decibel at a time.

Articles: 429

Related Posts

Leave a Reply

Your email address will not be published. Required fields are marked *

Trending now

Featured image for Can I Visit the Worlds Quietest Room Discover the Ultimate Silence 2026
Can I Visit the World’s Quietest Room? Your Ultimate Guide (2026) 🤫
Featured image for Inside the Quietest Room in the World 5 Million Challenge Sign Up 2026
Inside the Quietest Room in the World: $5 Million Challenge Sign Up? 🤫 (2026)
Featured image for 6 Quiet Bottom-Freezer Refrigerators That Transform Your Kitchen 2025
6 Quiet Bottom-Freezer Refrigerators That Transform Your Kitchen (2025) 🤫
Discover the Quietest Places, Gadgets & Tips for Ultimate Silence 🤫 (2026)
